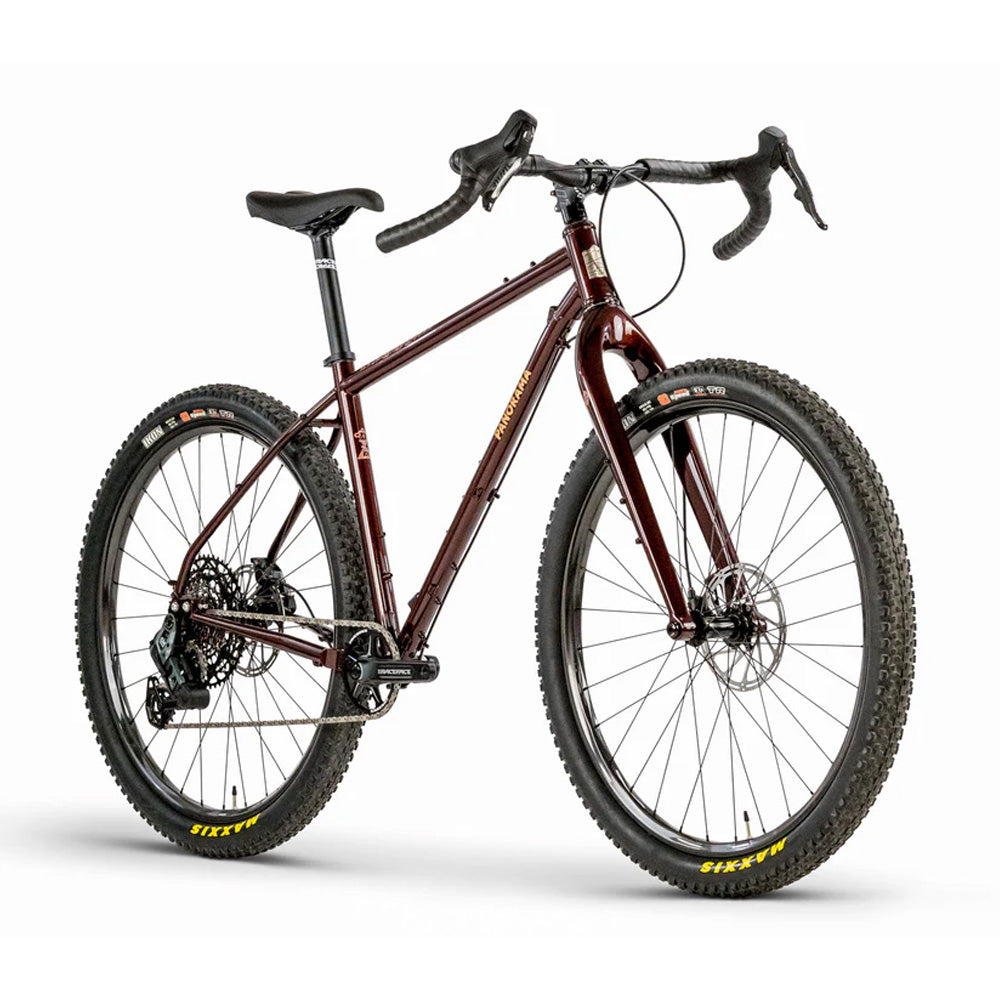

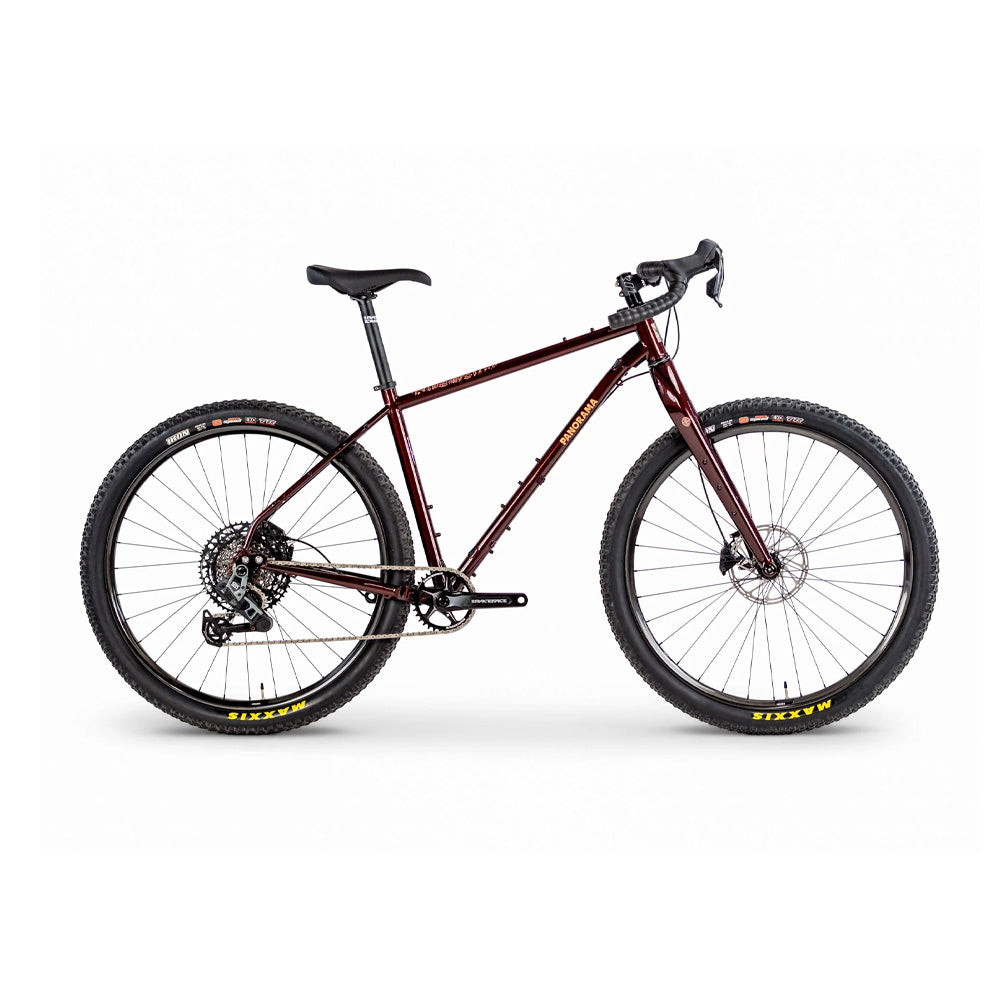

Panorama Taïga 3 EXP Gravel Bike

Panorama Taïga 3 EXP Gravel Bike

Building on the legacy of the Taïga EXP, this third generation was designed for cyclists seeking long-distance adventures across all types of terrain. Its versatile geometry allows for a position that is both comfortable and efficient, whether tackling bikepacking routes, off-road ultra-distance races, or all-terrain rides.

Specifications:

• Frame: Reynolds 725 butted steel, internal cable routing for dropper seat post, internal wire routing for rear light, sliding dropouts compatible Single Speed and Rohloff hub, belt drive compatible, SRAM UDH dropout (T-Type compatible), post mount brake STD, rear rack and fender mount, mid seat stay rack mounting point, triple water bottle mount on top and under the downtube, raised water bottle mount on seat tube (not interfering with dropper post), gas tank mount on top of top tube, electrodeposition surface treatment (corrosion protection), 12 x148 mm boost rear spacing, 73 mm BSA bottom bracket, headset top ZS44 and lower EC44, 34.9 mm diameter seat post clamp, 31.6 mm diameter seat post, 34.9 mm diameter front derailleur clamp, maximum tire clearance 29"x2.6" or 27.5"x2.8", suspension fork compatible (geometry corrected to 120 mm travel fork)
• Fork: high strength carbon, 15 x 110 même spacing, triple cargo mounts, fender mounts, internal cable routing for Dynamo hub, tapered steer tube 1-1/8" / 1-1/2", max tire clearance of 29 x 2.6", post mount brake STD
• Wheelset: WTB, STi30, Shimano TC500 (front), TC600 (rear), 32 holes, centerlock, microspline
• Tires: Maxxis Ikon, 29 x 2.35, 3C/EXO/TR, 60 TPI
• Crankset: Race Face Effect, 34T SHI12 cinch DM chainring, 165 mm
• Bottom bracket: Race Face Team BSA 24 même spindle
• Cassette: Shimano M7100-12, 10-51T, 12 speeds
• Chain: Shimano M2100, 12 speeds
• Derailleur: Shimano GRX RX822, SGS 12 speeds
• Brakes: Shimano GRX RX610
• Rotors: Shimano RT64 centerlock, 180 mm
• Handlebar: Ritchey Road CMP Corralitos, 50 cm wide, 24d Flare
• Stem: Ritchey MTB Trail, alloy BBK, 31.8 x 45 mm
• Headset: Cane Creek 40-Series
• Seatpost: Kalloy SP-3D2, 31.6 x 350 mm
• Saddle: WTB Pure
• Pedals: not included
